Spring Cloud Alibaba:Sentinel实现熔断与限流

macrozhengSpringCloud学习教程SpringCloudSpringCloud Alibaba

Spring Cloud Alibaba:Sentinel实现熔断与限流

Spring Cloud Alibaba 致力于提供微服务开发的一站式解决方案,Sentinel 作为其核心组件之一,具有熔断与限流等一系列服务保护功能,本文将对其用法进行详细介绍。

Sentinel简介

随着微服务的流行,服务和服务之间的稳定性变得越来越重要。 Sentinel 以流量为切入点,从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。

Sentinel具有如下特性:

  • 丰富的应用场景:承接了阿里巴巴近 10 年的双十一大促流量的核心场景,例如秒杀,可以实时熔断下游不可用应用;
  • 完备的实时监控:同时提供实时的监控功能。可以在控制台中看到接入应用的单台机器秒级数据,甚至 500 台以下规模的集群的汇总运行情况;
  • 广泛的开源生态:提供开箱即用的与其它开源框架/库的整合模块,例如与 Spring Cloud、Dubbo、gRPC 的整合;
  • 完善的 SPI 扩展点:提供简单易用、完善的 SPI 扩展点。您可以通过实现扩展点,快速的定制逻辑。

安装Sentinel控制台

Sentinel控制台是一个轻量级的控制台应用,它可用于实时查看单机资源监控及集群资源汇总,并提供了一系列的规则管理功能,如流控规则、降级规则、热点规则等。

  • 我们先从官网下载Sentinel,这里下载的是sentinel-dashboard-1.6.3.jar文件,下载地址:https://github.com/alibaba/Sentinel/releases

  • 下载完成后在命令行输入如下命令运行Sentinel控制台:

java -jar sentinel-dashboard-1.6.3.jar

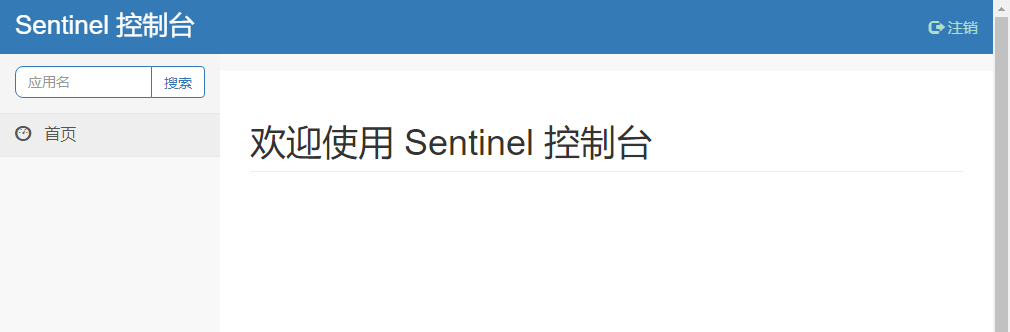

  • Sentinel控制台默认运行在8080端口上,登录账号密码均为sentinel,通过如下地址可以进行访问:http://localhost:8080

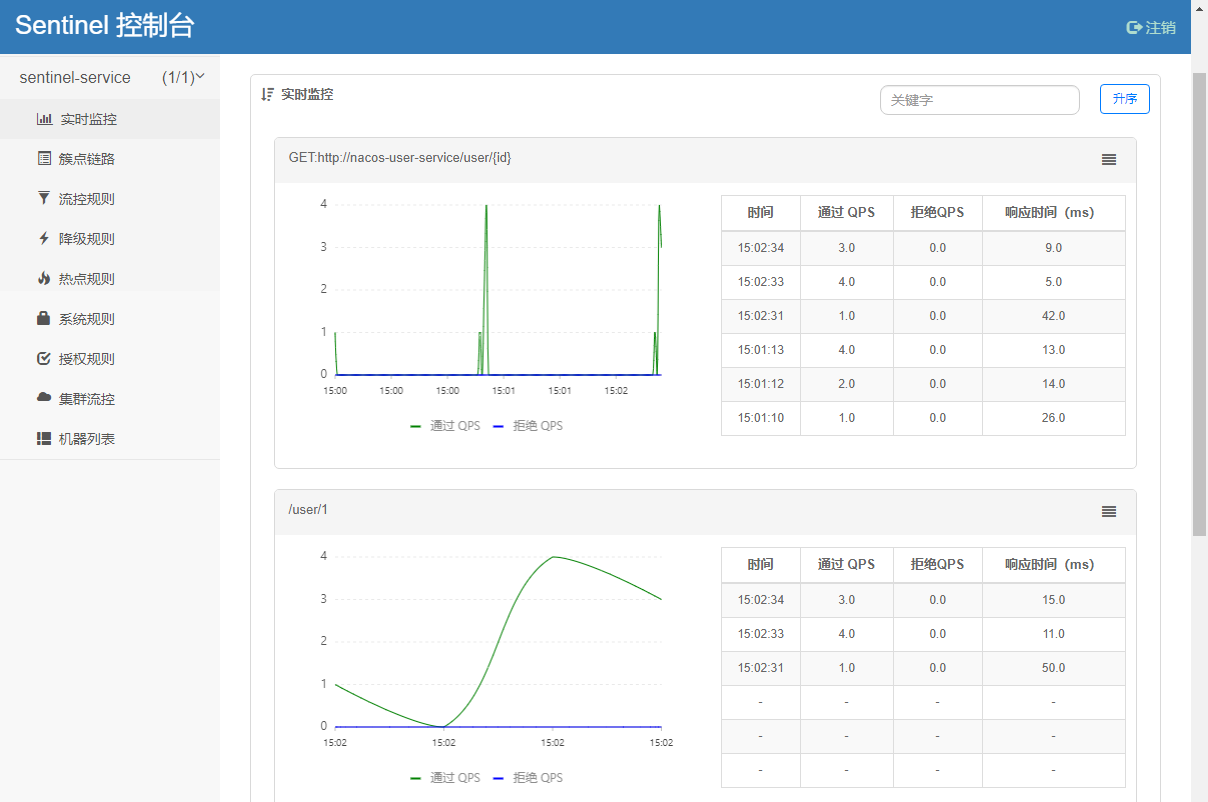

  • Sentinel控制台可以查看单台机器的实时监控数据。

创建sentinel-service模块

这里我们创建一个sentinel-service模块,用于演示Sentinel的熔断与限流功能。

  • 在pom.xml中添加相关依赖,这里我们使用Nacos作为注册中心,所以需要同时添加Nacos的依赖:
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
  • 在application.yml中添加相关配置,主要是配置了Nacos和Sentinel控制台的地址:
server:
  port: 8401
spring:
  application:
    name: sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #配置Nacos地址
    sentinel:
      transport:
        dashboard: localhost:8080 #配置sentinel dashboard地址
        port: 8719
service-url:
  user-service: http://nacos-user-service
management:
  endpoints:
    web:
      exposure:
        include: '*'

限流功能

Sentinel Starter 默认为所有的 HTTP 服务提供了限流埋点,我们也可以通过使用@SentinelResource来自定义一些限流行为。

创建RateLimitController类

用于测试熔断和限流功能。

/**
 * 限流功能
 * Created by macro on 2019/11/7.
 */
@RestController
@RequestMapping("/rateLimit")
public class RateLimitController {

    /**
     * 按资源名称限流,需要指定限流处理逻辑
     */
    @GetMapping("/byResource")
    @SentinelResource(value = "byResource",blockHandler = "handleException")
    public CommonResult byResource() {
        return new CommonResult("按资源名称限流", 200);
    }

    /**
     * 按URL限流,有默认的限流处理逻辑
     */
    @GetMapping("/byUrl")
    @SentinelResource(value = "byUrl",blockHandler = "handleException")
    public CommonResult byUrl() {
        return new CommonResult("按url限流", 200);
    }

    public CommonResult handleException(BlockException exception){
        return new CommonResult(exception.getClass().getCanonicalName(),200);
    }

}

根据资源名称限流

我们可以根据@SentinelResource注解中定义的value(资源名称)来进行限流操作,但是需要指定限流处理逻辑。

  • 流控规则可以在Sentinel控制台进行配置,由于我们使用了Nacos注册中心,我们先启动Nacos和sentinel-service;

  • 由于Sentinel采用的懒加载规则,需要我们先访问下接口,Sentinel控制台中才会有对应服务信息,我们先访问下该接口:http://localhost:8401/rateLimit/byResource

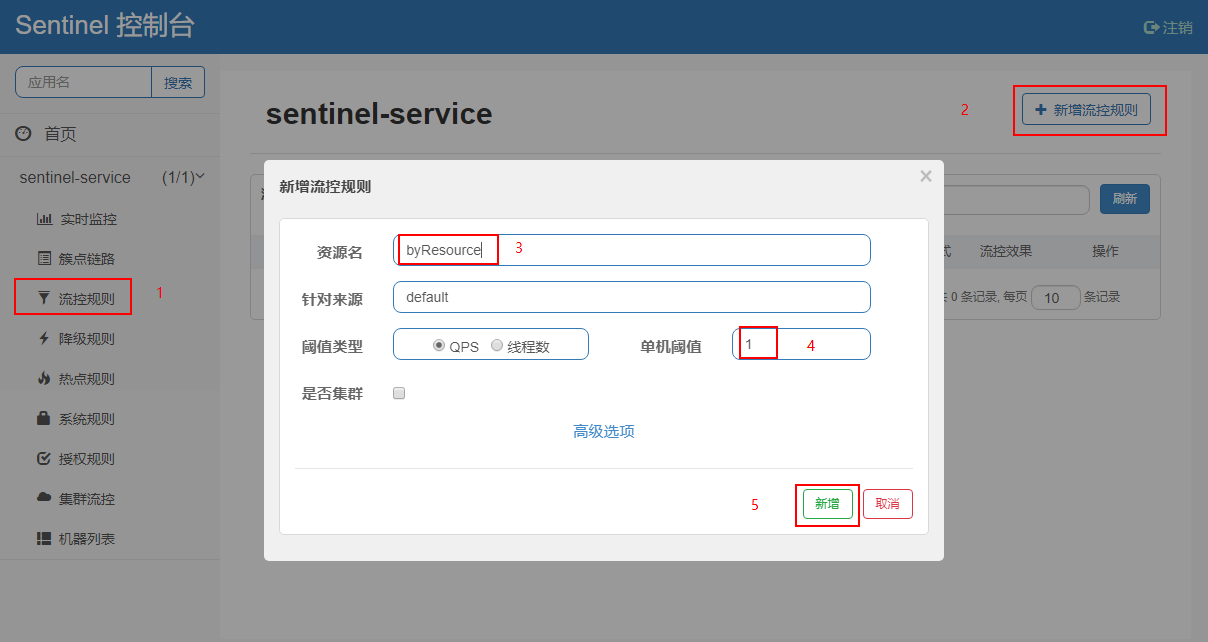

  • 在Sentinel控制台配置流控规则,根据@SentinelResource注解的value值:

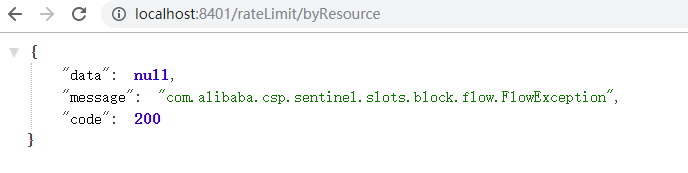

  • 快速访问上面的接口,可以发现返回了自己定义的限流处理信息:

根据URL限流

我们还可以通过访问的URL来限流,会返回默认的限流处理信息。

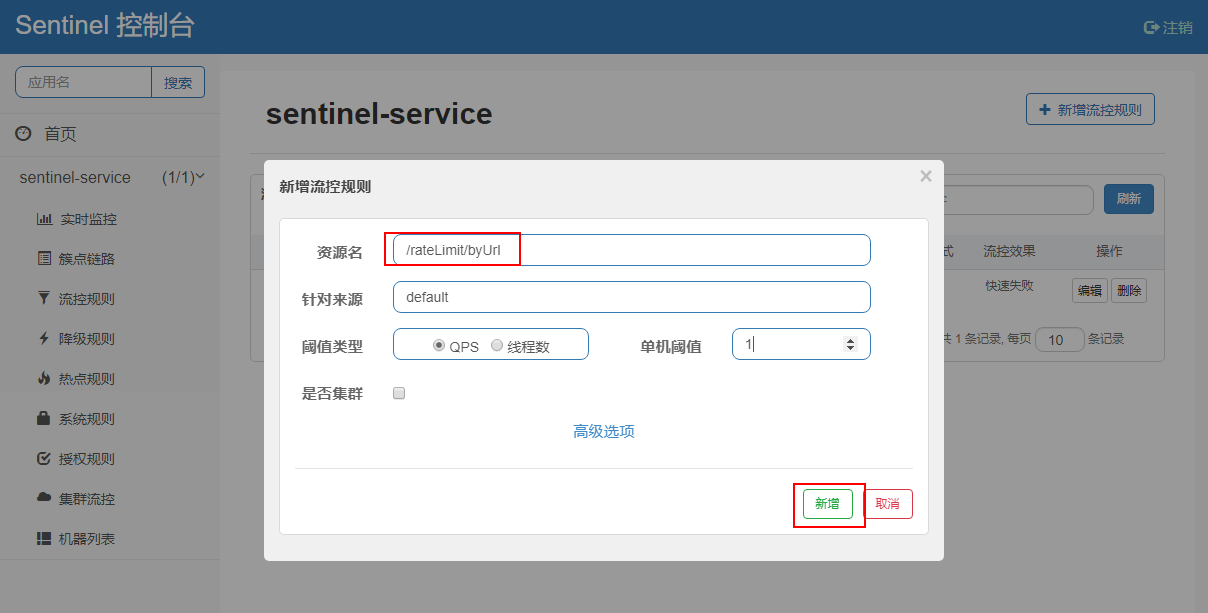

  • 在Sentinel控制台配置流控规则,使用访问的URL:

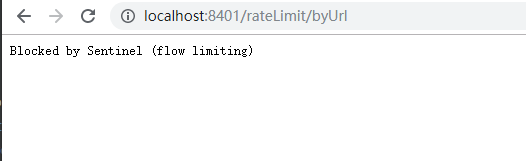

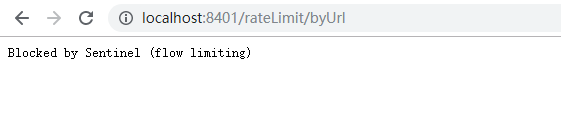

  • 多次访问该接口,会返回默认的限流处理结果:http://localhost:8401/rateLimit/byUrl

自定义限流处理逻辑

我们可以自定义通用的限流处理逻辑,然后在@SentinelResource中指定。

  • 创建CustomBlockHandler类用于自定义限流处理逻辑:
/**
 * Created by macro on 2019/11/7.
 */
public class CustomBlockHandler {

    public CommonResult handleException(BlockException exception){
        return new CommonResult("自定义限流信息",200);
    }
}
  • 在RateLimitController中使用自定义限流处理逻辑:
/**
 * 限流功能
 * Created by macro on 2019/11/7.
 */
@RestController
@RequestMapping("/rateLimit")
public class RateLimitController {

    /**
     * 自定义通用的限流处理逻辑
     */
    @GetMapping("/customBlockHandler")
    @SentinelResource(value = "customBlockHandler", blockHandler = "handleException",blockHandlerClass = CustomBlockHandler.class)
    public CommonResult blockHandler() {
        return new CommonResult("限流成功", 200);
    }

}

熔断功能

Sentinel 支持对服务间调用进行保护,对故障应用进行熔断操作,这里我们使用RestTemplate来调用nacos-user-service服务所提供的接口来演示下该功能。

  • 首先我们需要使用@SentinelRestTemplate来包装下RestTemplate实例:
/**
 * Created by macro on 2019/8/29.
 */
@Configuration
public class RibbonConfig {

    @Bean
    @SentinelRestTemplate
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}
  • 添加CircleBreakerController类,定义对nacos-user-service提供接口的调用:
/**
 * 熔断功能
 * Created by macro on 2019/11/7.
 */
@RestController
@RequestMapping("/breaker")
public class CircleBreakerController {

    private Logger LOGGER = LoggerFactory.getLogger(CircleBreakerController.class);
    @Autowired
    private RestTemplate restTemplate;
    @Value("${service-url.user-service}")
    private String userServiceUrl;

    @RequestMapping("/fallback/{id}")
    @SentinelResource(value = "fallback",fallback = "handleFallback")
    public CommonResult fallback(@PathVariable Long id) {
        return restTemplate.getForObject(userServiceUrl + "/user/{1}", CommonResult.class, id);
    }

    @RequestMapping("/fallbackException/{id}")
    @SentinelResource(value = "fallbackException",fallback = "handleFallback2", exceptionsToIgnore = {NullPointerException.class})
    public CommonResult fallbackException(@PathVariable Long id) {
        if (id == 1) {
            throw new IndexOutOfBoundsException();
        } else if (id == 2) {
            throw new NullPointerException();
        }
        return restTemplate.getForObject(userServiceUrl + "/user/{1}", CommonResult.class, id);
    }

    public CommonResult handleFallback(Long id) {
        User defaultUser = new User(-1L, "defaultUser", "123456");
        return new CommonResult<>(defaultUser,"服务降级返回",200);
    }

    public CommonResult handleFallback2(@PathVariable Long id, Throwable e) {
        LOGGER.error("handleFallback2 id:{},throwable class:{}", id, e.getClass());
        User defaultUser = new User(-2L, "defaultUser2", "123456");
        return new CommonResult<>(defaultUser,"服务降级返回",200);
    }
}
  • 启动nacos-user-service和sentinel-service服务:

  • 由于我们并没有在nacos-user-service中定义id为4的用户,所有访问如下接口会返回服务降级结果:http://localhost:8401/breaker/fallback/4

{
	"data": {
		"id": -1,
		"username": "defaultUser",
		"password": "123456"
	},
	"message": "服务降级返回",
	"code": 200
}

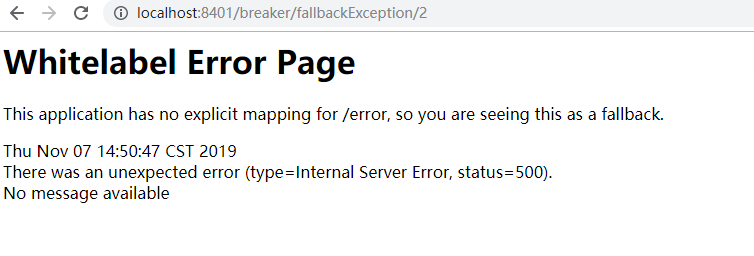

  • 由于我们使用了exceptionsToIgnore参数忽略了NullPointerException,所以我们访问接口报空指针时不会发生服务降级:http://localhost:8401/breaker/fallbackException/2

与Feign结合使用

Sentinel也适配了Feign组件,我们使用Feign来进行服务间调用时,也可以使用它来进行熔断。

  • 首先我们需要在pom.xml中添加Feign相关依赖:
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
  • 在application.yml中打开Sentinel对Feign的支持:
feign:
  sentinel:
    enabled: true #打开sentinel对feign的支持
  • 在应用启动类上添加@EnableFeignClients启动Feign的功能;

  • 创建一个UserService接口,用于定义对nacos-user-service服务的调用:

/**
 * Created by macro on 2019/9/5.
 */
@FeignClient(value = "nacos-user-service",fallback = UserFallbackService.class)
public interface UserService {
    @PostMapping("/user/create")
    CommonResult create(@RequestBody User user);

    @GetMapping("/user/{id}")
    CommonResult<User> getUser(@PathVariable Long id);

    @GetMapping("/user/getByUsername")
    CommonResult<User> getByUsername(@RequestParam String username);

    @PostMapping("/user/update")
    CommonResult update(@RequestBody User user);

    @PostMapping("/user/delete/{id}")
    CommonResult delete(@PathVariable Long id);
}
  • 创建UserFallbackService类实现UserService接口,用于处理服务降级逻辑:
/**
 * Created by macro on 2019/9/5.
 */
@Component
public class UserFallbackService implements UserService {
    @Override
    public CommonResult create(User user) {
        User defaultUser = new User(-1L, "defaultUser", "123456");
        return new CommonResult<>(defaultUser,"服务降级返回",200);
    }

    @Override
    public CommonResult<User> getUser(Long id) {
        User defaultUser = new User(-1L, "defaultUser", "123456");
        return new CommonResult<>(defaultUser,"服务降级返回",200);
    }

    @Override
    public CommonResult<User> getByUsername(String username) {
        User defaultUser = new User(-1L, "defaultUser", "123456");
        return new CommonResult<>(defaultUser,"服务降级返回",200);
    }

    @Override
    public CommonResult update(User user) {
        return new CommonResult("调用失败,服务被降级",500);
    }

    @Override
    public CommonResult delete(Long id) {
        return new CommonResult("调用失败,服务被降级",500);
    }
}
  • 在UserFeignController中使用UserService通过Feign调用nacos-user-service服务中的接口:
/**
 * Created by macro on 2019/8/29.
 */
@RestController
@RequestMapping("/user")
public class UserFeignController {
    @Autowired
    private UserService userService;

    @GetMapping("/{id}")
    public CommonResult getUser(@PathVariable Long id) {
        return userService.getUser(id);
    }

    @GetMapping("/getByUsername")
    public CommonResult getByUsername(@RequestParam String username) {
        return userService.getByUsername(username);
    }

    @PostMapping("/create")
    public CommonResult create(@RequestBody User user) {
        return userService.create(user);
    }

    @PostMapping("/update")
    public CommonResult update(@RequestBody User user) {
        return userService.update(user);
    }

    @PostMapping("/delete/{id}")
    public CommonResult delete(@PathVariable Long id) {
        return userService.delete(id);
    }
}
  • 调用如下接口会发生服务降级,返回服务降级处理信息:http://localhost:8401/user/4
{
	"data": {
		"id": -1,
		"username": "defaultUser",
		"password": "123456"
	},
	"message": "服务降级返回",
	"code": 200
}

使用Nacos存储规则

默认情况下,当我们在Sentinel控制台中配置规则时,控制台推送规则方式是通过API将规则推送至客户端并直接更新到内存中。一旦我们重启应用,规则将消失。下面我们介绍下如何将配置规则进行持久化,以存储到Nacos为例。

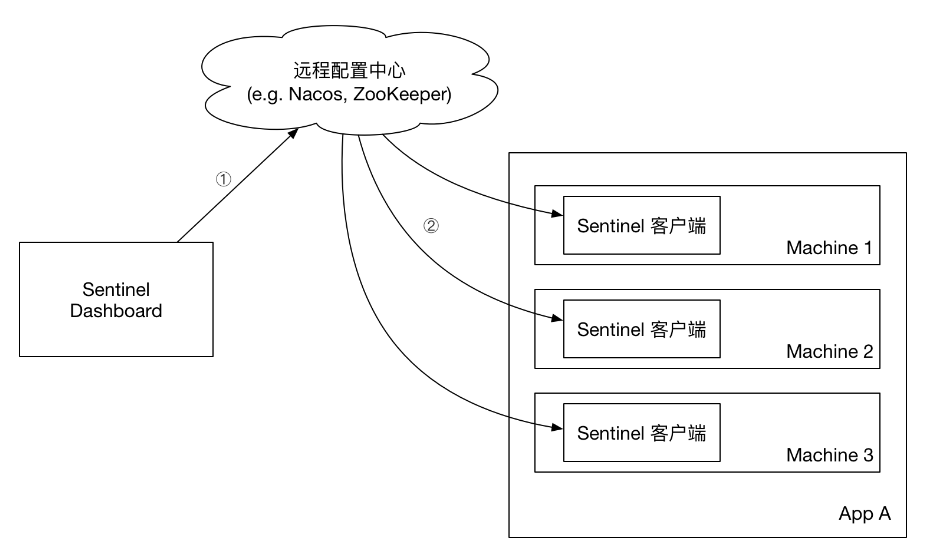

原理示意图

  • 首先我们直接在配置中心创建规则,配置中心将规则推送到客户端;

  • Sentinel控制台也从配置中心去获取配置信息。

功能演示

  • 先在pom.xml中添加相关依赖:
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
</dependency>
  • 修改application.yml配置文件,添加Nacos数据源配置:
spring:
  cloud:
    sentinel:
      datasource:
        ds1:
          nacos:
            server-addr: localhost:8848
            dataId: ${spring.application.name}-sentinel
            groupId: DEFAULT_GROUP
            data-type: json
            rule-type: flow

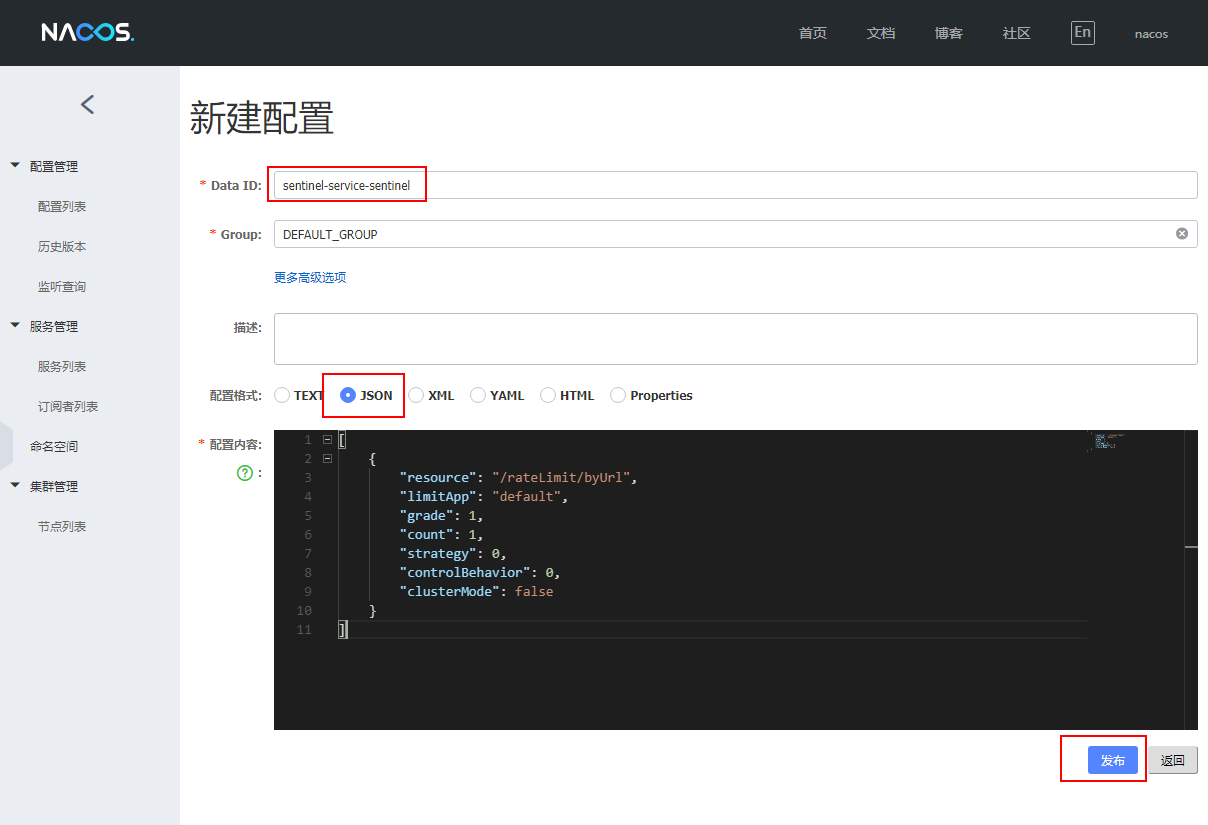

  • 在Nacos中添加配置:

  • 添加配置信息如下:
[
    {
        "resource": "/rateLimit/byUrl",
        "limitApp": "default",
        "grade": 1,
        "count": 1,
        "strategy": 0,
        "controlBehavior": 0,
        "clusterMode": false
    }
]
  • 相关参数解释:

    • resource:资源名称;
    • limitApp:来源应用;
    • grade:阈值类型,0表示线程数,1表示QPS;
    • count:单机阈值;
    • strategy:流控模式,0表示直接,1表示关联,2表示链路;
    • controlBehavior:流控效果,0表示快速失败,1表示Warm Up,2表示排队等待;
    • clusterMode:是否集群。

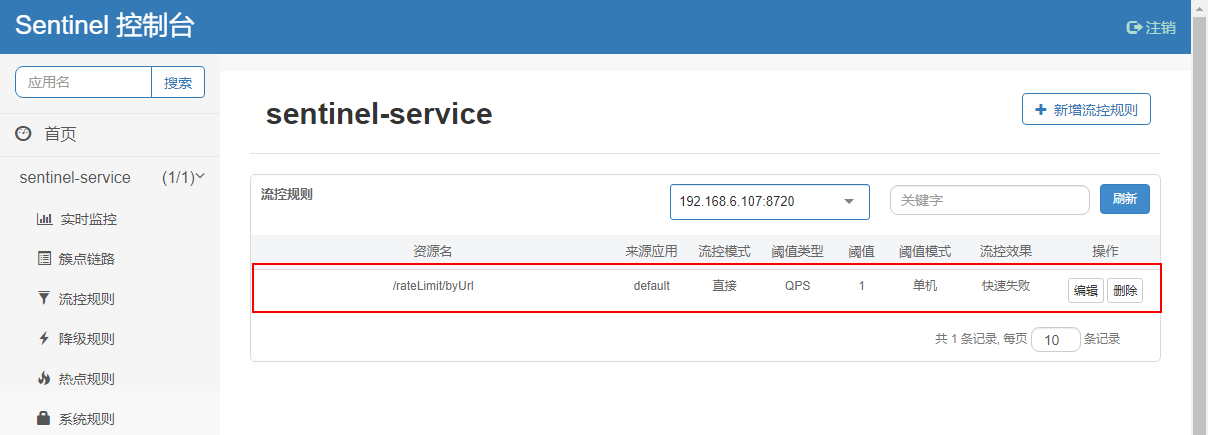

  • 发现Sentinel控制台已经有了如下限流规则:

  • 快速访问测试接口,可以发现返回了限流处理信息:

参考资料

Spring Cloud Alibaba 官方文档:https://github.com/alibaba/spring-cloud-alibaba/wiki

使用到的模块

springcloud-learning
├── nacos-user-service -- 注册到nacos的提供User对象CRUD接口的服务
└── sentinel-service -- sentinel功能测试服务

项目源码地址

https://github.com/macrozheng/springcloud-learningopen in new window
