Spring Boot Admin:微服务应用监控

macrozhengSpringCloud学习教程SpringCloud应用监控

Spring Boot Admin:微服务应用监控

Spring Boot Admin 可以对SpringBoot应用的各项指标进行监控,可以作为微服务架构中的监控中心来使用,本文将对其用法进行详细介绍。

Spring Boot Admin 简介

SpringBoot应用可以通过Actuator来暴露应用运行过程中的各项指标,Spring Boot Admin通过这些指标来监控SpringBoot应用,然后通过图形化界面呈现出来。Spring Boot Admin不仅可以监控单体应用,还可以和Spring Cloud的注册中心相结合来监控微服务应用。

Spring Boot Admin 可以提供应用的以下监控信息:

  • 监控应用运行过程中的概览信息;
  • 度量指标信息,比如JVM、Tomcat及进程信息;
  • 环境变量信息,比如系统属性、系统环境变量以及应用配置信息;
  • 查看所有创建的Bean信息;
  • 查看应用中的所有配置信息;
  • 查看应用运行日志信息;
  • 查看JVM信息;
  • 查看可以访问的Web端点;
  • 查看HTTP跟踪信息。

创建admin-server模块

这里我们创建一个admin-server模块来作为监控中心演示其功能。

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-server</artifactId>
</dependency>
  • 在application.yml中进行配置:
spring:
  application:
    name: admin-server
server:
  port: 9301
  • 在启动类上添加@EnableAdminServer来启用admin-server功能:
@EnableAdminServer
@SpringBootApplication
public class AdminServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(AdminServerApplication.class, args);
    }

}

创建admin-client模块

这里我们创建一个admin-client模块作为客户端注册到admin-server。

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-client</artifactId>
</dependency>
  • 在application.yml中进行配置:
spring:
  application:
    name: admin-client
  boot:
    admin:
      client:
        url: http://localhost:9301 #配置admin-server地址
server:
  port: 9305
management:
  endpoints:
    web:
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: always
logging:
  file: admin-client.log #添加开启admin的日志监控
  • 启动admin-server和admin-client服务。

监控信息演示

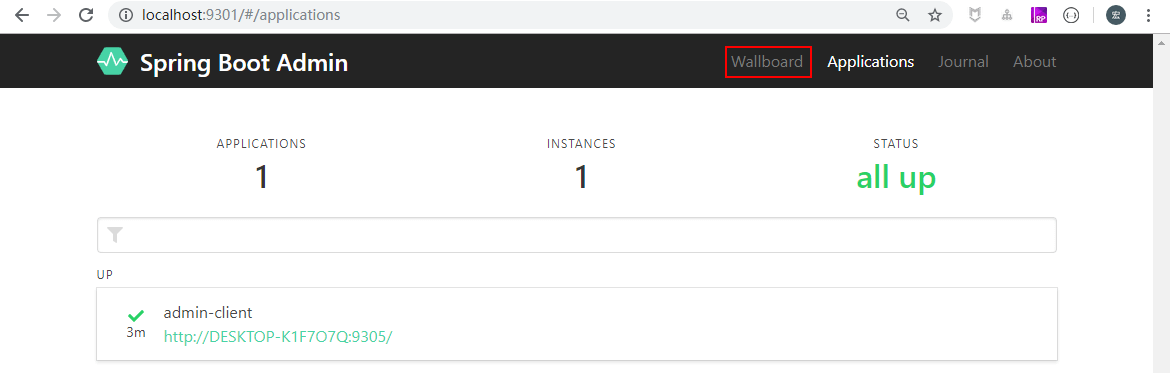

  • 访问如下地址打开Spring Boot Admin的主页:http://localhost:9301

  • 点击wallboard按钮,选择admin-client查看监控信息;

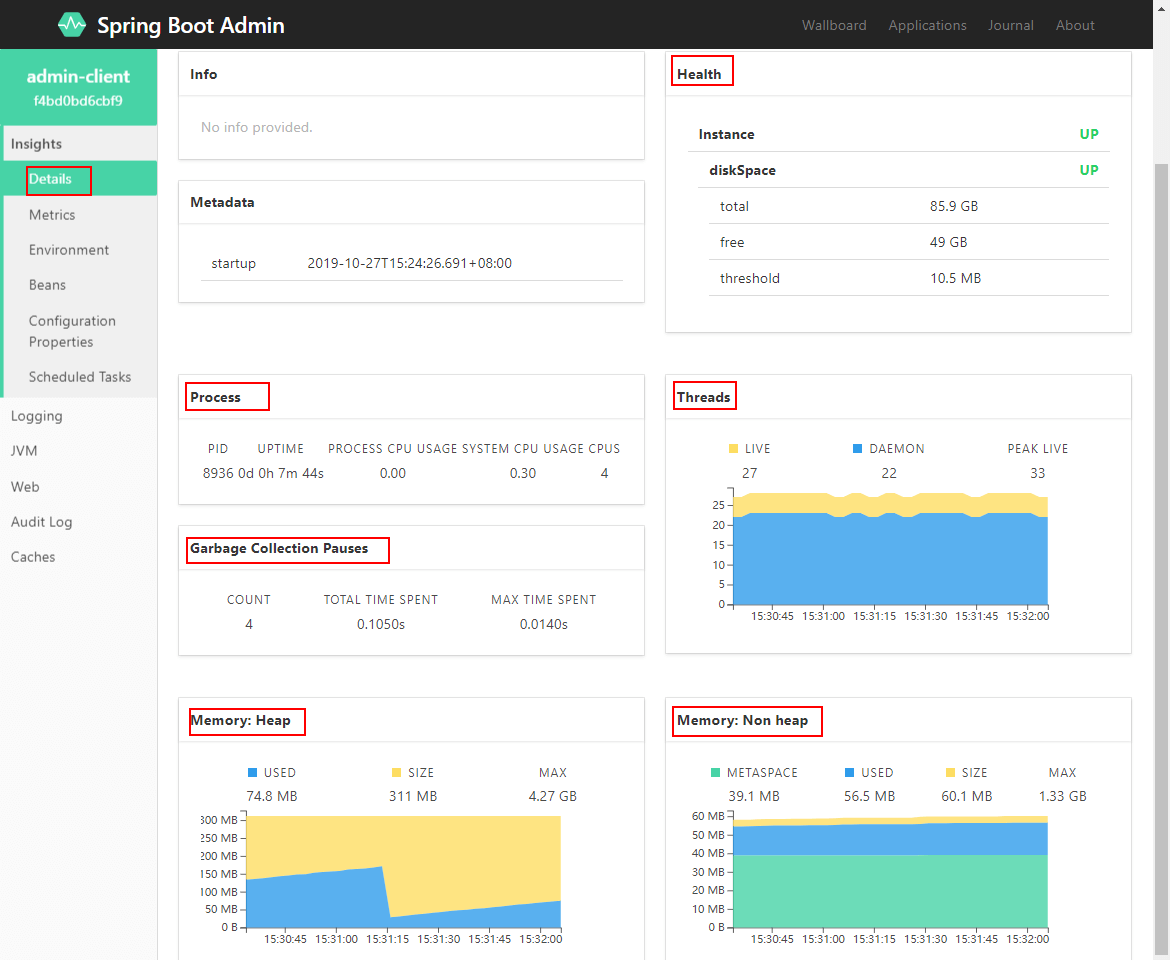

  • 监控信息概览;

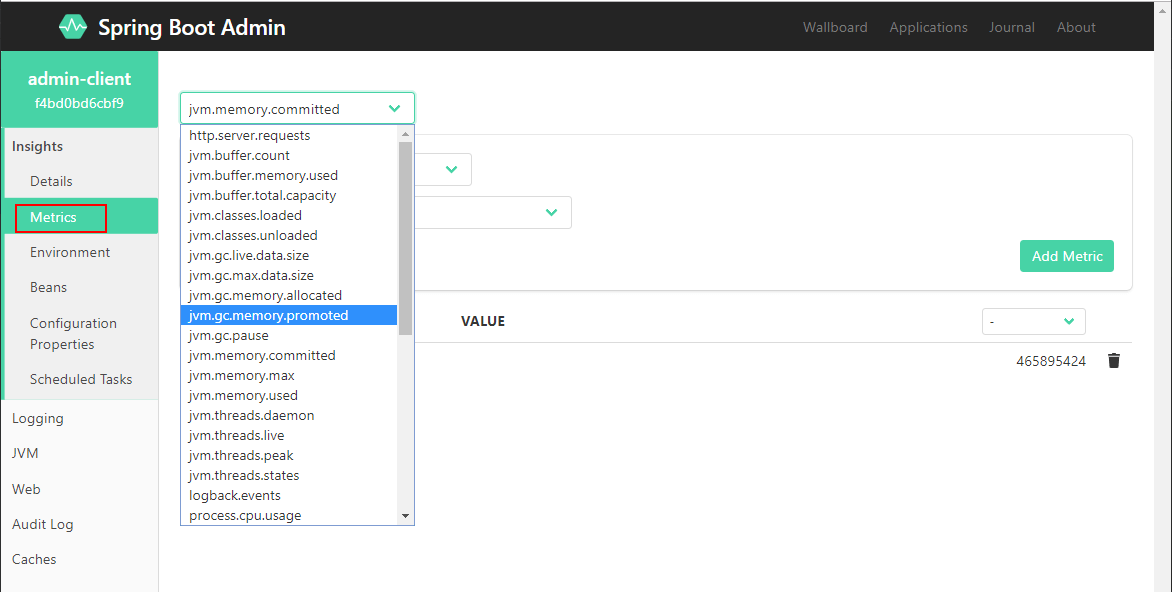

  • 度量指标信息,比如JVM、Tomcat及进程信息;

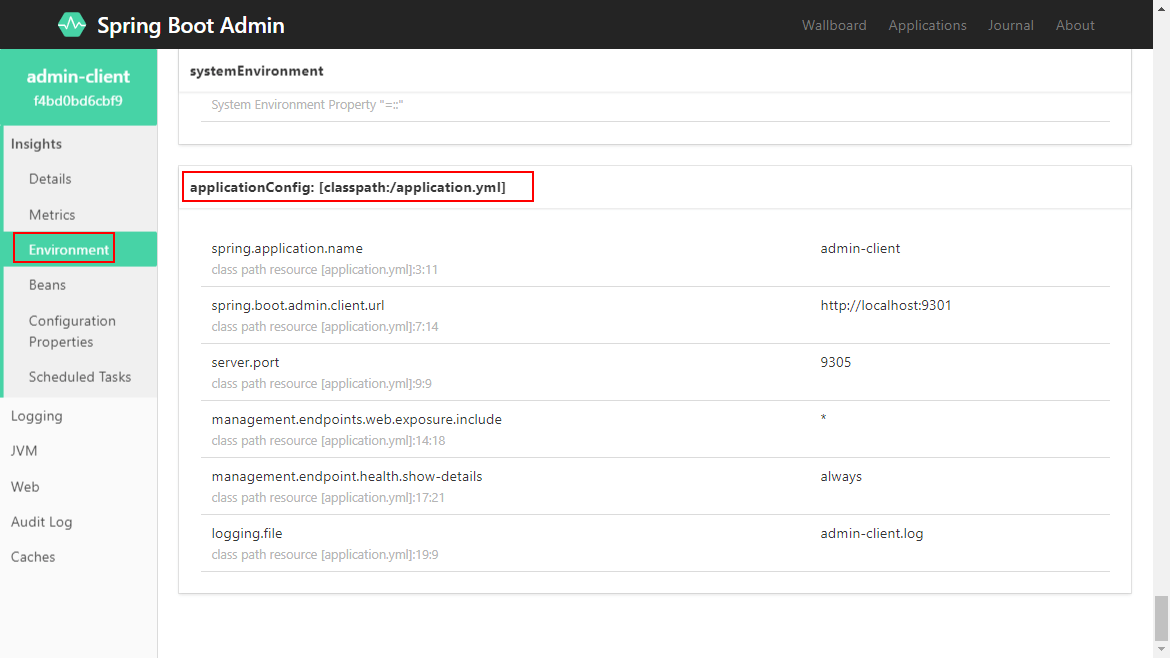

  • 环境变量信息,比如系统属性、系统环境变量以及应用配置信息;

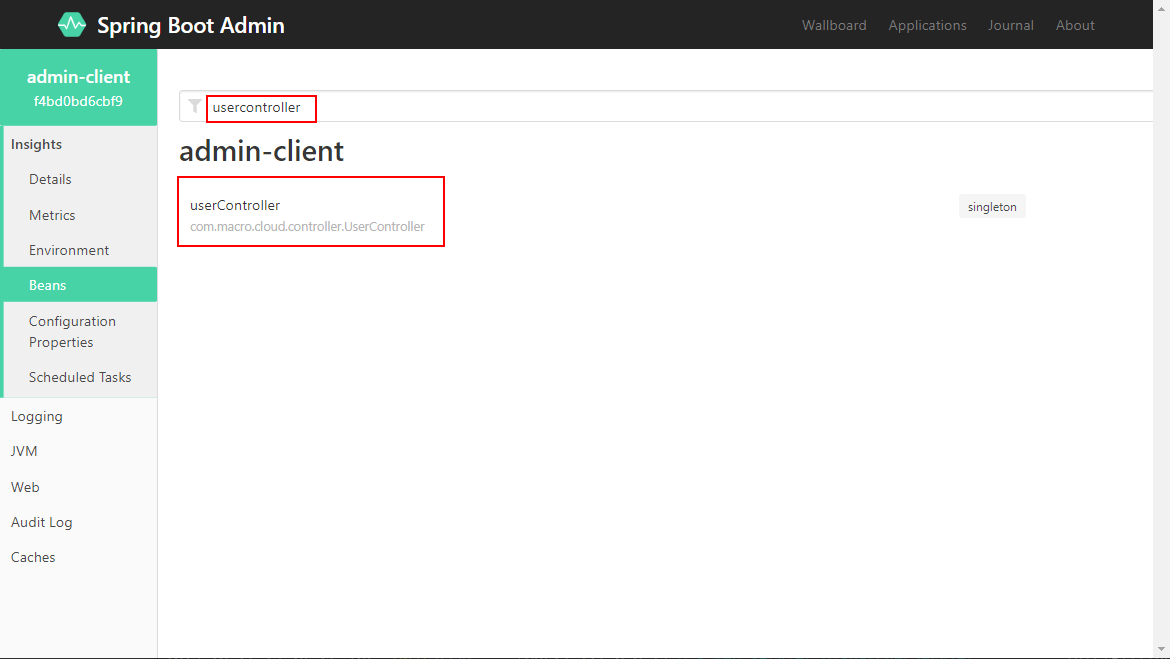

  • 查看所有创建的Bean信息;

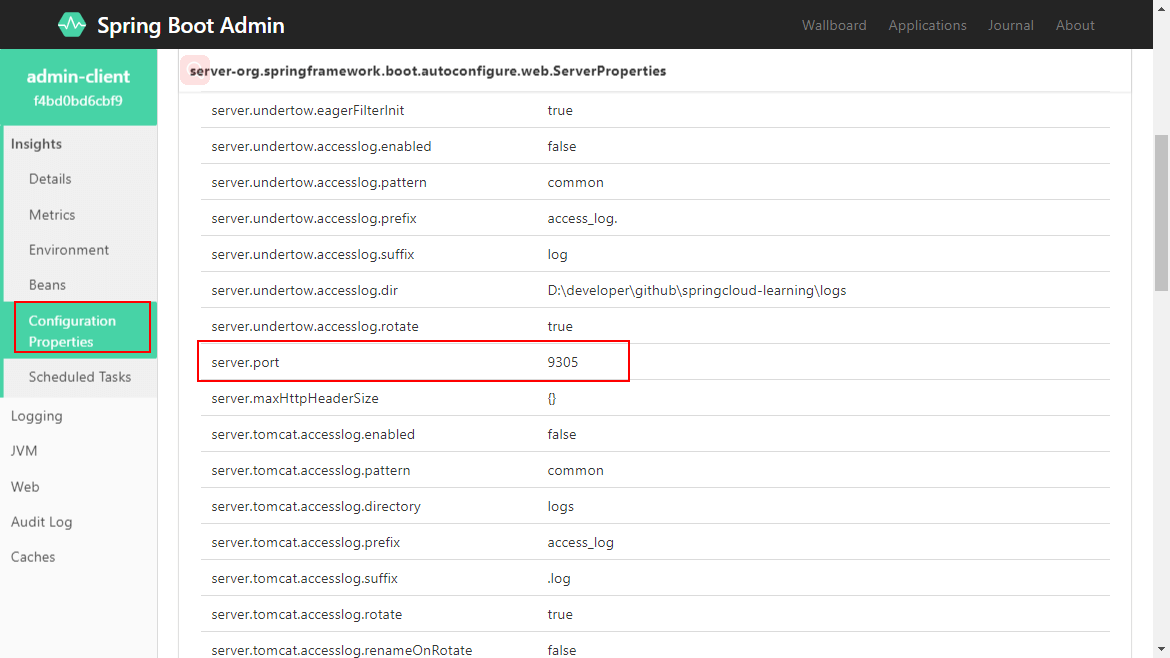

  • 查看应用中的所有配置信息;

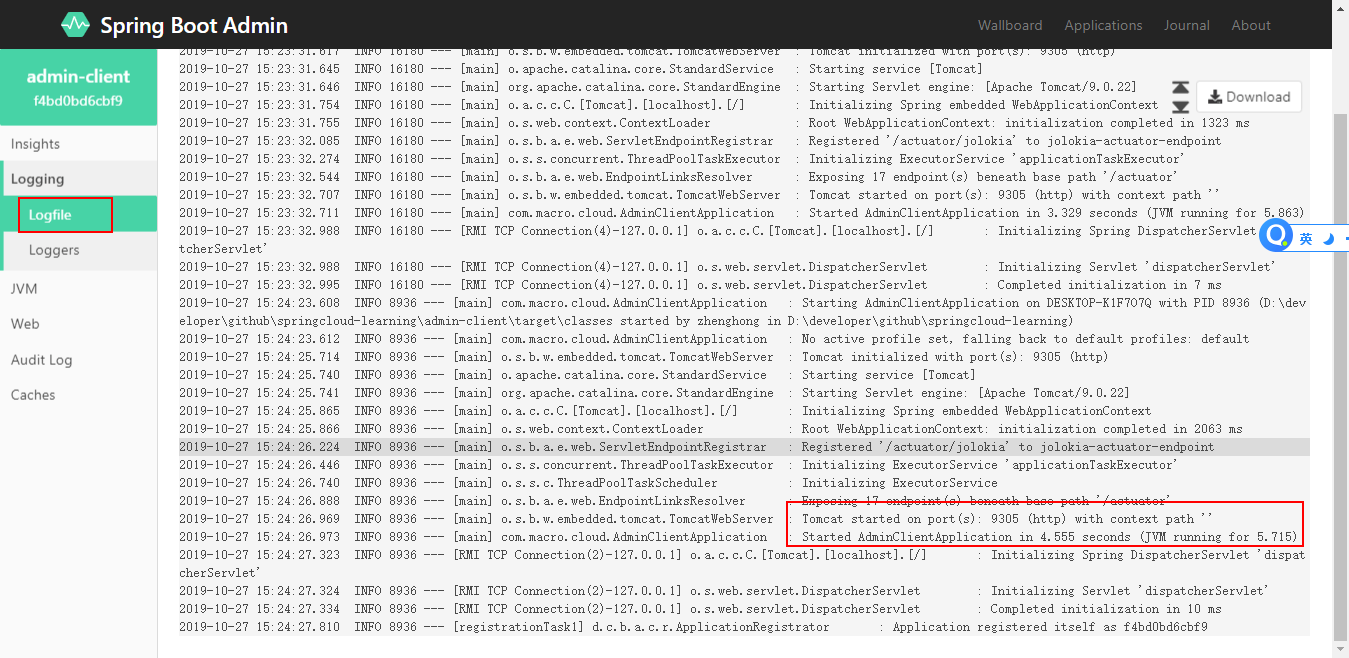

  • 查看日志信息,需要添加以下配置才能开启;
logging:
  file: admin-client.log #添加开启admin的日志监控

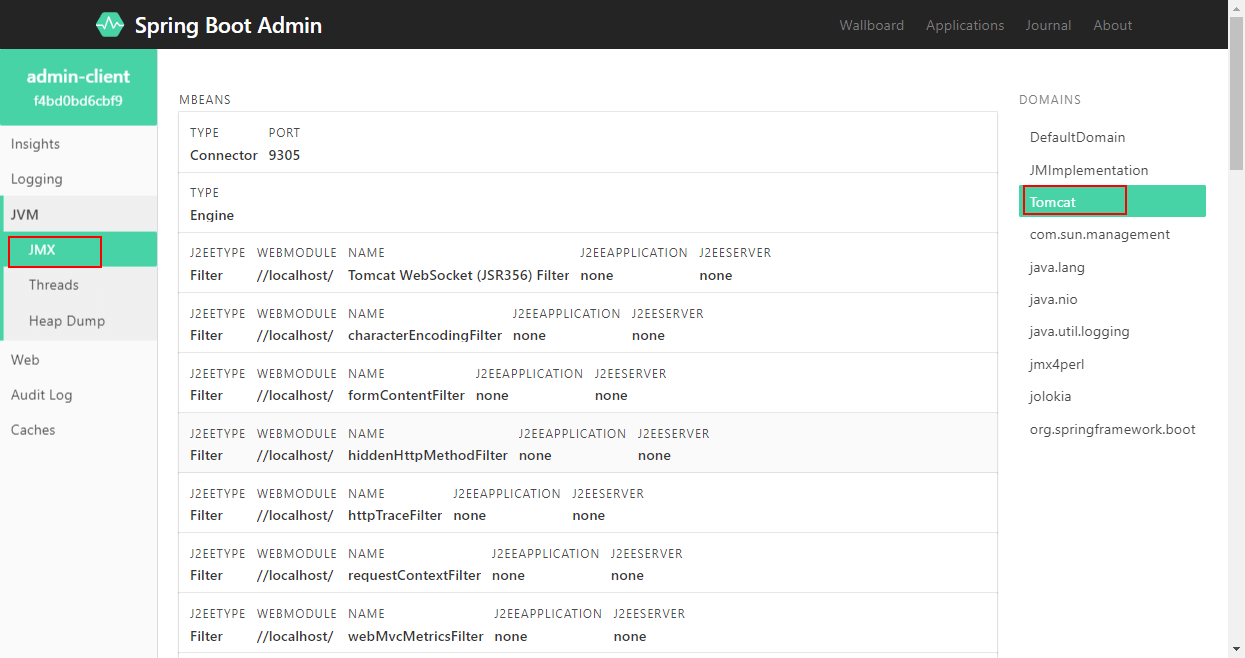

  • 查看JVM信息;

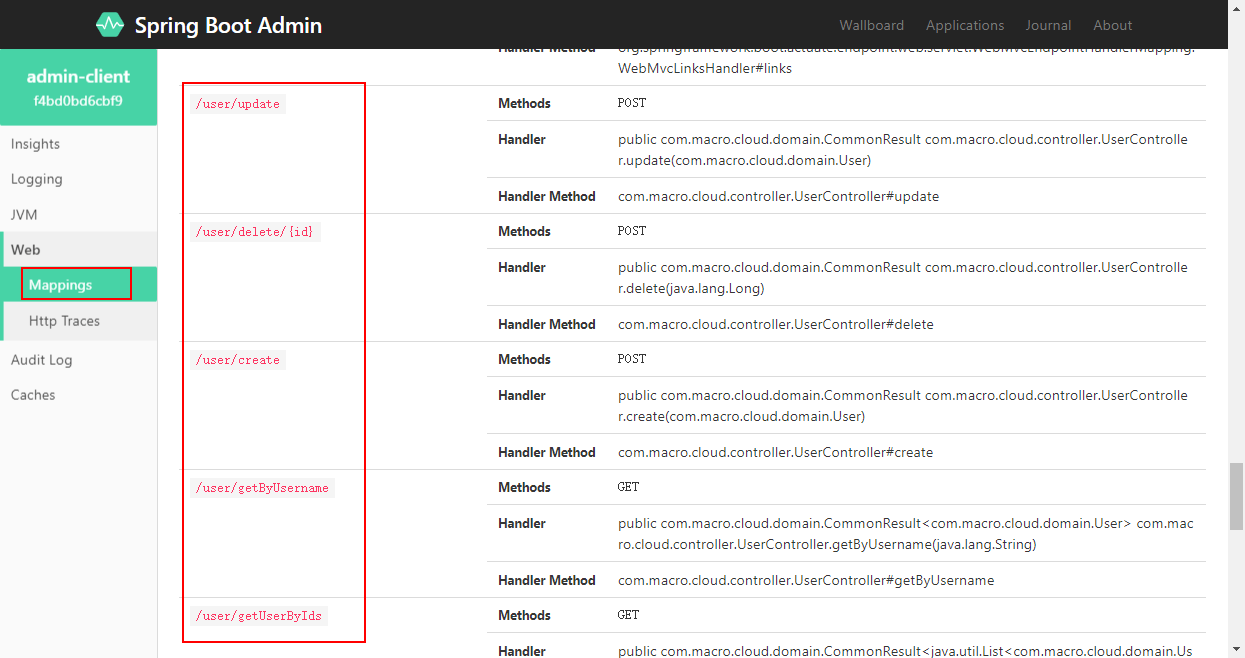

  • 查看可以访问的Web端点;

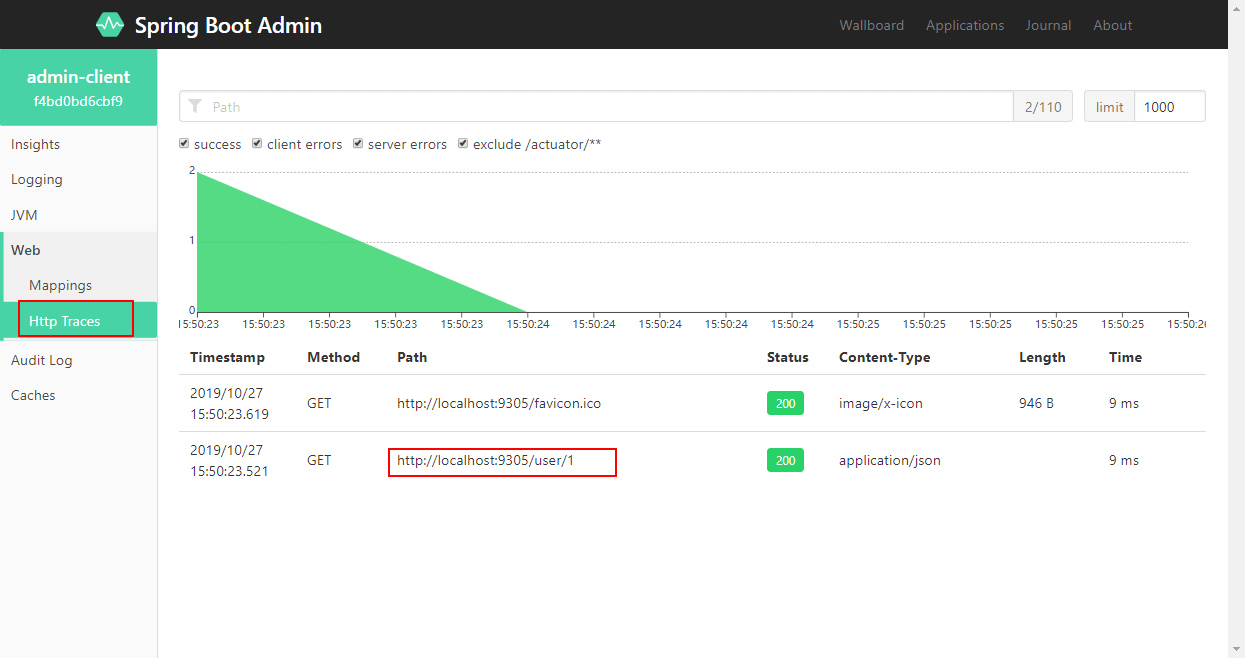

  • 查看HTTP跟踪信息;

结合注册中心使用

Spring Boot Admin结合Spring Cloud 注册中心使用,只需将admin-server和注册中心整合即可,admin-server 会自动从注册中心获取服务列表,然后挨个获取监控信息。这里以Eureka注册中心为例来介绍下该功能。

修改admin-server

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
  • 在application-eureka.yml中进行配置,只需添加注册中心配置即可:
spring:
  application:
    name: admin-server
server:
  port: 9301
eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:8001/eureka/
  • 在启动类上添加@EnableDiscoveryClient来启用服务注册功能:
@EnableDiscoveryClient
@EnableAdminServer
@SpringBootApplication
public class AdminServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(AdminServerApplication.class, args);
    }

}

修改admin-client

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
  • 在application-eureka.yml中进行配置,删除原来的admin-server地址配置,添加注册中心配置即可:
spring:
  application:
    name: admin-client
server:
  port: 9305
management:
  endpoints:
    web:
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: always
logging:
  file: admin-client.log #添加开启admin的日志监控
eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:8001/eureka/
  • 在启动类上添加@EnableDiscoveryClient来启用服务注册功能:
@EnableDiscoveryClient
@SpringBootApplication
public class AdminClientApplication {

    public static void main(String[] args) {
        SpringApplication.run(AdminClientApplication.class, args);
    }

}

功能演示

  • 启动eureka-server,使用application-eureka.yml配置启动admin-server,admin-client;

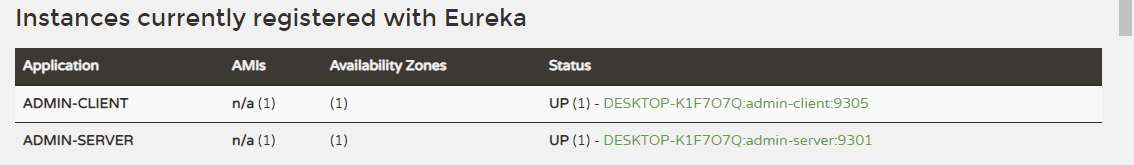

  • 查看注册中心发现服务均已注册:http://localhost:8001/

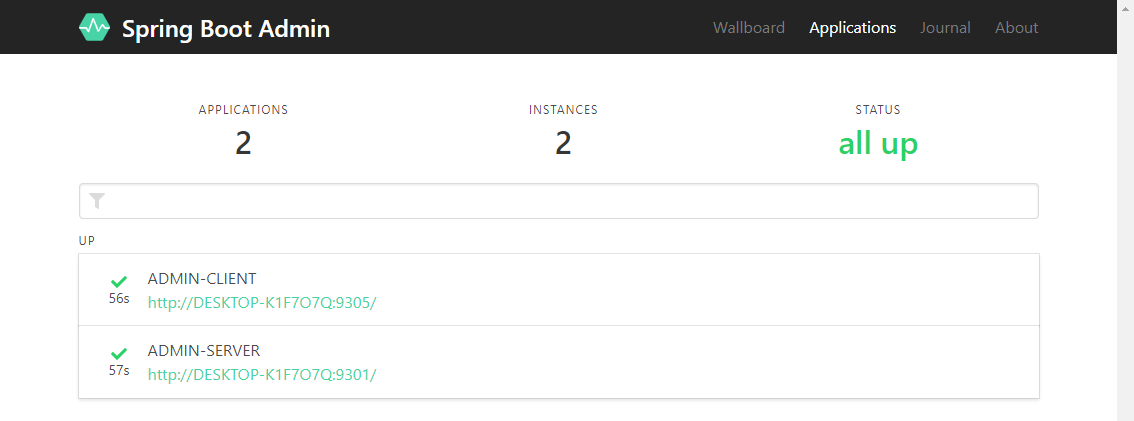

  • 查看Spring Boot Admin 主页发现可以看到服务信息:http://localhost:9301

添加登录认证

我们可以通过给admin-server添加Spring Security支持来获得登录认证功能。

创建admin-security-server模块

  • 在pom.xml中添加相关依赖:
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-server</artifactId>
    <version>2.1.5</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
  • 在application.yml中进行配置,配置登录用户名和密码,忽略admin-security-server的监控信息:
spring:
  application:
    name: admin-security-server
  security: # 配置登录用户名和密码
    user:
      name: macro
      password: 123456
  boot:  # 不显示admin-security-server的监控信息
    admin:
      discovery:
        ignored-services: ${spring.application.name}
server:
  port: 9301
eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:8001/eureka/
  • 对SpringSecurity进行配置,以便admin-client可以注册:
/**
 * Created by macro on 2019/9/30.
 */
@Configuration
public class SecuritySecureConfig extends WebSecurityConfigurerAdapter {
    private final String adminContextPath;

    public SecuritySecureConfig(AdminServerProperties adminServerProperties) {
        this.adminContextPath = adminServerProperties.getContextPath();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        SavedRequestAwareAuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
        successHandler.setTargetUrlParameter("redirectTo");
        successHandler.setDefaultTargetUrl(adminContextPath + "/");

        http.authorizeRequests()
                //1.配置所有静态资源和登录页可以公开访问
                .antMatchers(adminContextPath + "/assets/**").permitAll()
                .antMatchers(adminContextPath + "/login").permitAll()
                .anyRequest().authenticated()
                .and()
                //2.配置登录和登出路径
                .formLogin().loginPage(adminContextPath + "/login").successHandler(successHandler).and()
                .logout().logoutUrl(adminContextPath + "/logout").and()
                //3.开启http basic支持,admin-client注册时需要使用
                .httpBasic().and()
                .csrf()
                //4.开启基于cookie的csrf保护
                .csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse())
                //5.忽略这些路径的csrf保护以便admin-client注册
                .ignoringAntMatchers(
                        adminContextPath + "/instances",
                        adminContextPath + "/actuator/**"
                );
    }
}
  • 修改启动类,开启AdminServer及注册发现功能:
@EnableDiscoveryClient
@EnableAdminServer
@SpringBootApplication
public class AdminSecurityServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(AdminSecurityServerApplication.class, args);
    }

}

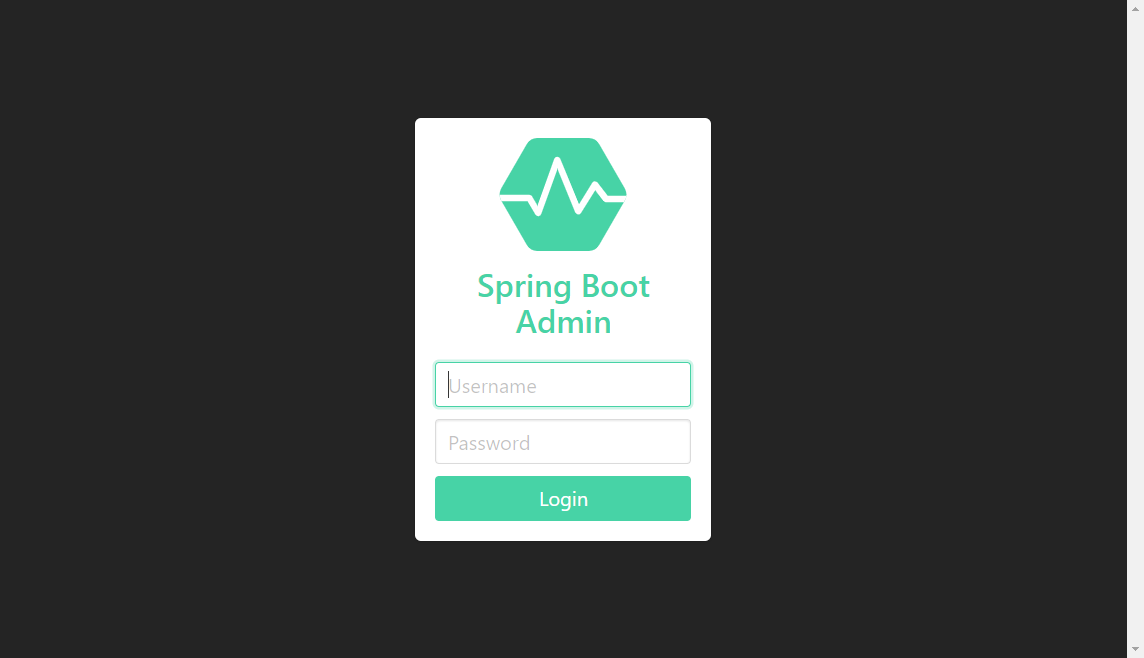

  • 启动eureka-server,admin-security-server,访问Spring Boot Admin 主页发现需要登录才能访问:http://localhost:9301

使用到的模块

springcloud-learning
├── eureka-server -- eureka注册中心
├── admin-server -- admin监控中心服务
├── admin-client -- admin监控中心监控的应用服务
└── admin-security-server -- 带登录认证的admin监控中心服务

项目源码地址

https://github.com/macrozheng/springcloud-learningopen in new window
